Description
| LOAD CAPACITY |
5,000kg to 7,000kg
|
| TRAVEL SPEED (FULL LOAD) | 33.5 kph to 33.8 kph |
| ENGINE MODEL | CUMMINS QSF3.8 Tier 4 Final |
| POWER (HP/RPM) | 101 hp / 2,200 rpm |
| FUEL TYPE | Diesel |
| LENGTH TO FACE OF FORKS | 3,505mm to 3,658mm |
| OVERHEAD GUARD HEIGHT | 2,083mm |
PERFORMANCE
EXCELLENT GRADEABILITY
The gradeability ranges from 13%-18% with a max speed of 12.9 km per hour.

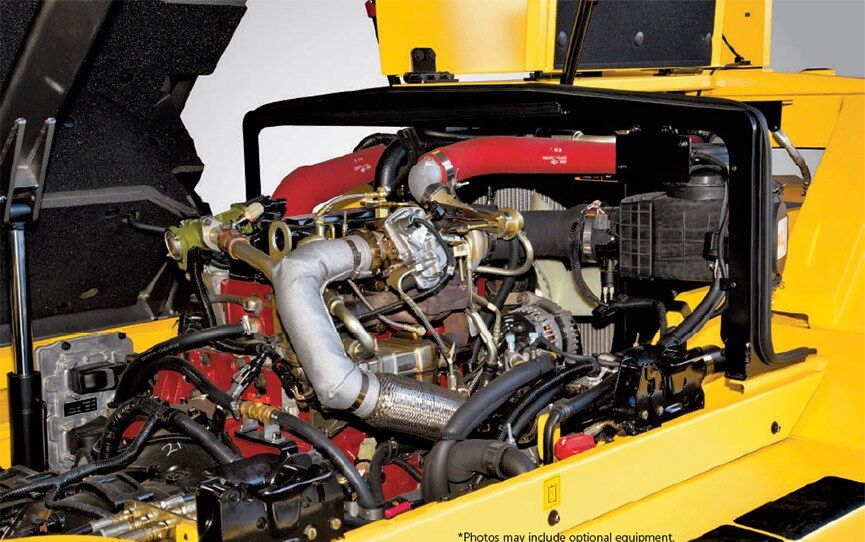

POWERFUL ENGINE
The high-powered Kubota V3307 engine ensures incomparable performance, durability and fuel efficiency.
FULLY HYDROSTATIC POWER STEERING
The hydraulic steering system ensures smooth and flexible steering, preventing overrun and kick-back.
ADJUSTABLE SPEED LIMIT FUNCTION
The “Vehicle Max Speed Limit” function lets the operator set the maximum speed limit between 8-19.3 kph allowing for increased safety.
ERGONOMICS
ADJUSTABLE STEERING WHEEL
Featuring a telescopic and tilt feature, the steering wheel can be adjusted by the operator for comfortable positioning.
GRAMMER FULL SUSPENSION SEAT
An easily adjustable, ergonomic seat provides unmatched comfort and reduces operator fatigue.
ERGONOMICALLY POSITIONED PEDALS
Based on human engineering, the accelerator, brake and inching pedals are optimally positioned for convenience while operating the equipment.
OPERATOR FRIENDLY PANEL
The operator friendly gauges and water resistant monitor panel allows the operator to easily monitor over 17 items inclusing fuel level, air cleaner filter warning light, and water temperature gauge. The center display alarms the driver should a fault occur.
SERVICEABILITY
EASY SERVICE ACCESS
The highly accessible engine compartment assures fast, efficient maintenance.
ONBOARD DIAGNOSTICS
On-board diagnostics are easily accessible through the color LCD monitor for improved serviceability and reduced downtime and cost.
WARRANTY
Hyundai’s industry-leading 2-year / 2,000 hour warranty demonstrates Hyundai’s commitment to product quality, reliability and support.
MAINTENANCE MANAGEMENT DISPLAY
Quick access to customizable maintenance schedules through the monitor makes regular maintenance easy for service professionals.
SAFETY
LOAD INDICATOR
Load can be placed on the fork and can be weighed by measuring the hydraulic pressure.
BACKUP CAMERA
The rear view camera aids the operator with better vision in reverse. Minimising the risk of a collision or interaction with a pedestrian.
OPERATOR PRESENCE SENSING SYSTEM (OPSS)
All mast and drive movements stop functioning when the operator is not in the seat.
LARGE ENTRY STEPS AND HAND GRIPS
Wide “open” step offers convenience and safety when entering and exiting truck.
